Description
Available in Asia, Australia/New Zealand, EMEA, Latin America & North America
Indoor 802.11ac Wave 2 Wi-Fi Access Point
Features and Benefits
Smaller locations can face big-time demands on their wireless infrastructure. Users access the same high-bandwidth applications and content they would consume anywhere else—and they expect strong, reliable connectivity.

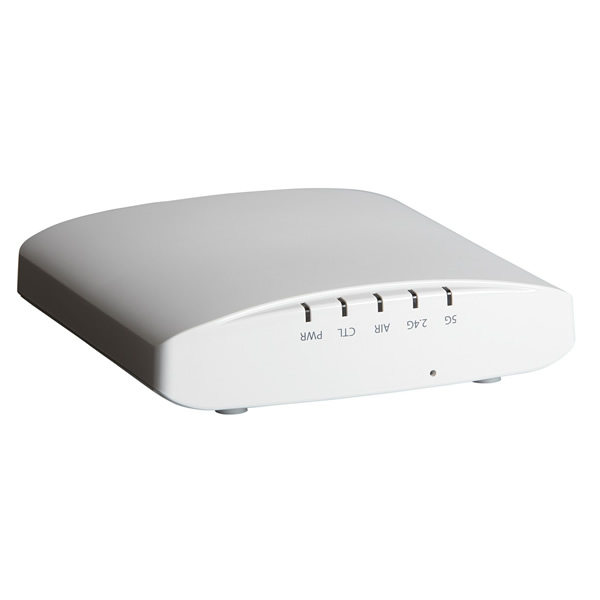

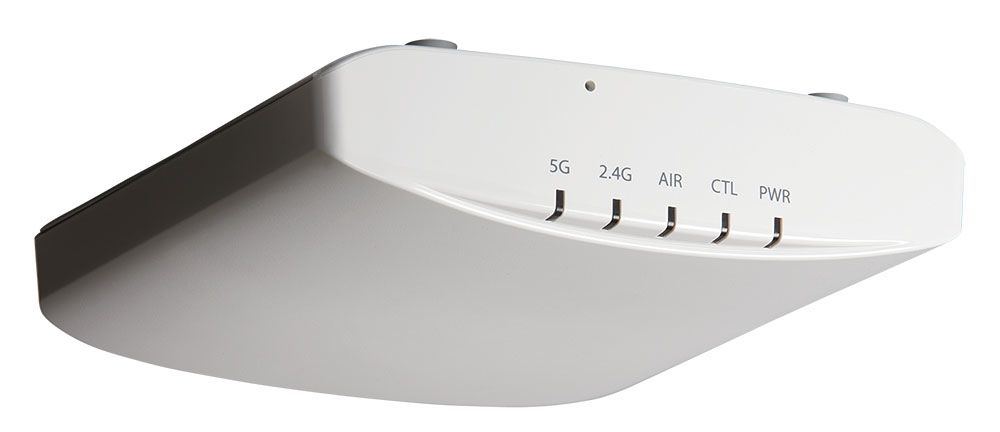

The RUCKUS R320 delivers consistent, reliable 802.11ac Wave 2 wireless networking at an affordable price. It features the patented Ruckus performance optimization and interference mitigation technologies found in our premier access points to deliver superior user experiences at extended ranges. But it provides them in an ultra-compact form factor built for small and midsize businesses and low-density hotspot nvironments.
Get industry-leading Wi-Fi performance in a package designed for smaller venues—with a price tag to match.
Specifications
| Antenna Patterns, per band | 64 |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 256 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
| Ethernet Ports | 1 x 1 GbE |
| IoT Support | IoT Ready |
| PD-MRC | NO |
| PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
| PHY Rate at 5 GHz, maximum | 867 Mb/s |
| Radio Chains and Streams | 2×2:2 |
| Rx Sensitivity at 2.4 GHz | -101 dBm |
| Rx Sensitivity at 5 GHz | -101 dBm |
| SmartMesh | No |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Download Datasheet (File source: RUCKUS R320 Data Sheet.pdf)
